All New X-Adv
The All-New X-ADV - Infinite Adventure
-
![]()
MAX.POWER OUTPUT
43.1kW @ 6,750rpm -
![]()
ENGINE
Liquid-cooled 4-stroke 8-valve, SOHC parallel 2-cylinder. EURO5 compliant.
The All-New X-ADV is designed to be a model with an adventurous spirit which fuses the concept of high agility and commuter convenience. It combines the performance of an off-road motorcycle along with the convenience of being a large scooter on city roads. The All-New X-ADV boasts power performance which offers great fulfilment on roads and dirt tracks. Sharp LED Lights with Day Time Running Lights and LED Stop Lights add sophistication to the X-ADV
Performance
Power Packed Performance
The All-New X-ADV, engine is based on the NC750 series, tuned for Improved launch acceleration and maintains a sporty and responsive feel. The PGM-FI system also creates a pulse type sound and feel to further enhance the bikes adventurous spirit
Producing 58hp @ 6750rpm and a torque of 69 N-m@4750 rpm which enables the X-ADV to go from a dirt track to a city road in a flash. Combined with our innovative 6-Speed Dual Clutch Transmission (DCT) with fully automatic or manual control for the ultimate outdoor adventure. The suspension stroke matches the NC750X for uneven road surface capability. With adjustable preload and rebound damping enables the bike to maintain stability and reduce pitching effect on varying road surfaces and when carrying a pillion and luggage.
Moto GP Throttle By Wire, enable various rider modes to be selected.
Design
The X-ADV has sleek scooting motorcycle design with tighter and more compact styling – it looks just as good ambling around town as it does touring the wide open road.
EXTERIOR COLOR
-

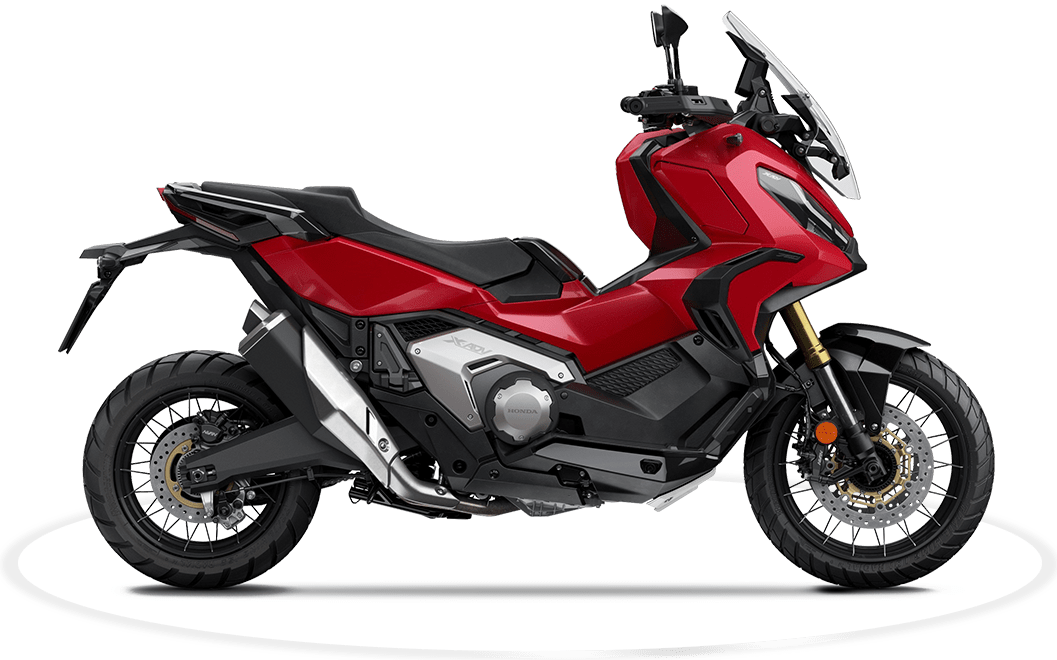

Grand Prix Red
![]()
-
Graphite-Black
![]()
-
Deep Mud Gray
![]()
Technology
5-inch Color TFT meter
Throttle By Wire and Riding Modes
Emergency stop signal
LED Headlights and Day Time Running Lights(DRL)
HONDA MOTORCYCLES
AR EXPERIENCE

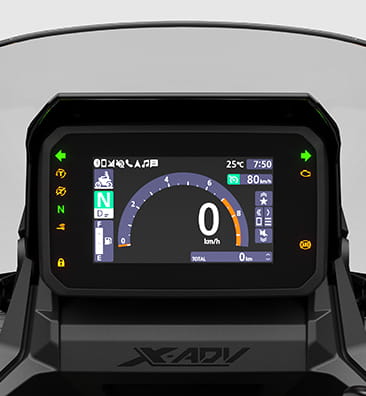

5-inch Color TFT meter
The X-ADV incorporates a 5-inch color liquid crystal (TFT) meter with high visibility. The display is divided by function/information type so that the rider can grasp abundant information intuitively. While the background color is white during daytime and black at night-time, graphics for speedometer, tachometer, and fuel gauge are available in the line of sight. The rider can select information to display with the switch on the left handlebar.
Throttle By Wire and Riding Modes
The X-ADV is equipped with the throttle-by-wire system (TBW) as standard, which converts the rider’s throttle grip operations into electric signals to control valve angles of the throttle body. The X-ADV also has 5 rider modes which the rider selects according to his/her preference and/or riding conditions by operating the MODE switch located on the left handlebar. The modes are SPORT, STANDARD, RAIN, GRAVEL and memorised USER setting.
Emergency stop signal
An emergency stop signal is built into the X-ADV to promptly notify following vehicles of sudden braking. The ABS modulator determines sudden braking of the vehicle going at 56 km/h or faster. Once receiving the information, the body control unit flashes the hazard lamp at high speed to warn the vehicles coming from behind.s
Advanced Body Structure
The X-ADV uses a new tubular steel frame that enables roomy under seat storage space married to a narrow 450mm wide rear seat unit. Rake and trail is set at 27°/104mm with wheelbase of 1588mm. A 39° steering angle (and turning radius of 2.8m) makes the X-ADV maneuverable in tight traffic. Long travel suspension, 153.5mm up front and 150mm from the rear – is matched to 162mm of ground clearance.
SWINGARM:
The X-ADV continues to incorporate a light-weight one-piece aluminum HPDC (high pressure die cast) swingarm Thanks to its high rigidity, the swingarm transmits not only driving force to the road surface effectively but also input from the surface to the suspension reliably, to achieve an excellent road surface follow-up property.

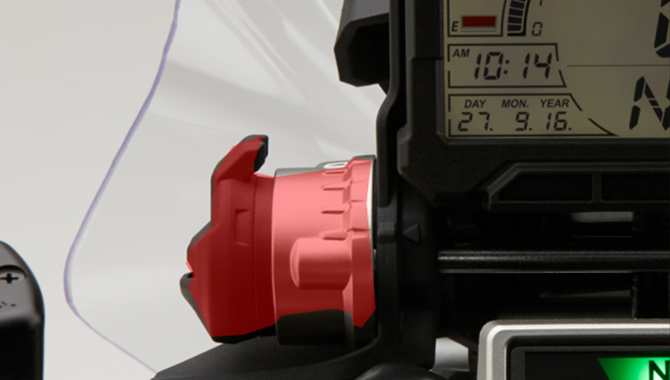

Screen Adjustment
Screen adjustment can be made using the adjuster mounted to the left side of the screen. The 5 preset positions (136mm upper to lower and 11° angle) can be adjusted by hand (no tools required).
Adjustable screen with 5 pre set height and angle
Smart key
It enables operation of the motorcycle without the need for inserting a key into the ignition switch and improves security as the motorcycle cannot be started by forcing the ignition switch. It uses a 2m communication range to automatically unlock when moving close to the motorcycle with the Honda Smart Key in your possession, this enables switching on of the ignition and unlocking the seat and fuel cap.
Large under-seat storage
Model & Specs
Choose from various options to suit your needs.
-
Displacement (cc) 745Max. Power Output 43.1kW @ 6,750rpmMax. Torque 69Nm @ 4,750rpm
- Fuel Tank Capacity (Litres) 13.2Starter ElectricTransmission type 6-speed Dual Clutch Transmission
View Specs
X-ADV
Details, colours, descriptions and illustrations are for information purposes only. Specifications or equipment may vary in some countries. Please check with your nearby Honda dealer.
